Casting Tooling Services for Foundries

Foundry services refer to the processes and support involved in producing metal cast components and the tooling needed to make them. This can include patternmaking, mold and tooling design, casting, finishing, machining, repairs, and production support. For manufacturers, foundry services help ensure cast parts and production tools meet performance, durability, and surface quality requirements.

Foundries use a range of tools, including patterns, molds, core boxes, flasks, jigs, fixtures, machining tools, finishing equipment, and inspection instruments. In a tooling-focused environment, key assets include foundry patterns, CNC-produced molds, custom frames, insert pins, pull pins, and repair components. These tools help control part geometry, surface finish, repeatability, and production efficiency.

Casting tooling for foundries includes the engineered tools used to create repeatable cast parts and molds, such as patterns, production tooling, fixtures, and supporting components. Well-designed tooling improves part consistency, protects critical surfaces, supports proper parting lines, and helps extend service life. It is essential for manufacturers that need dependable output over long production runs.

Foundry patterns directly influence dimensional accuracy, parting line placement, draft, and the overall ease of molding. A well-made pattern helps produce cleaner castings, reduces downstream corrections, and supports longer-lasting tooling. Experienced pattern makers also account for production features and mold behavior, which can improve repeatability and reduce wear during ongoing manufacturing use.

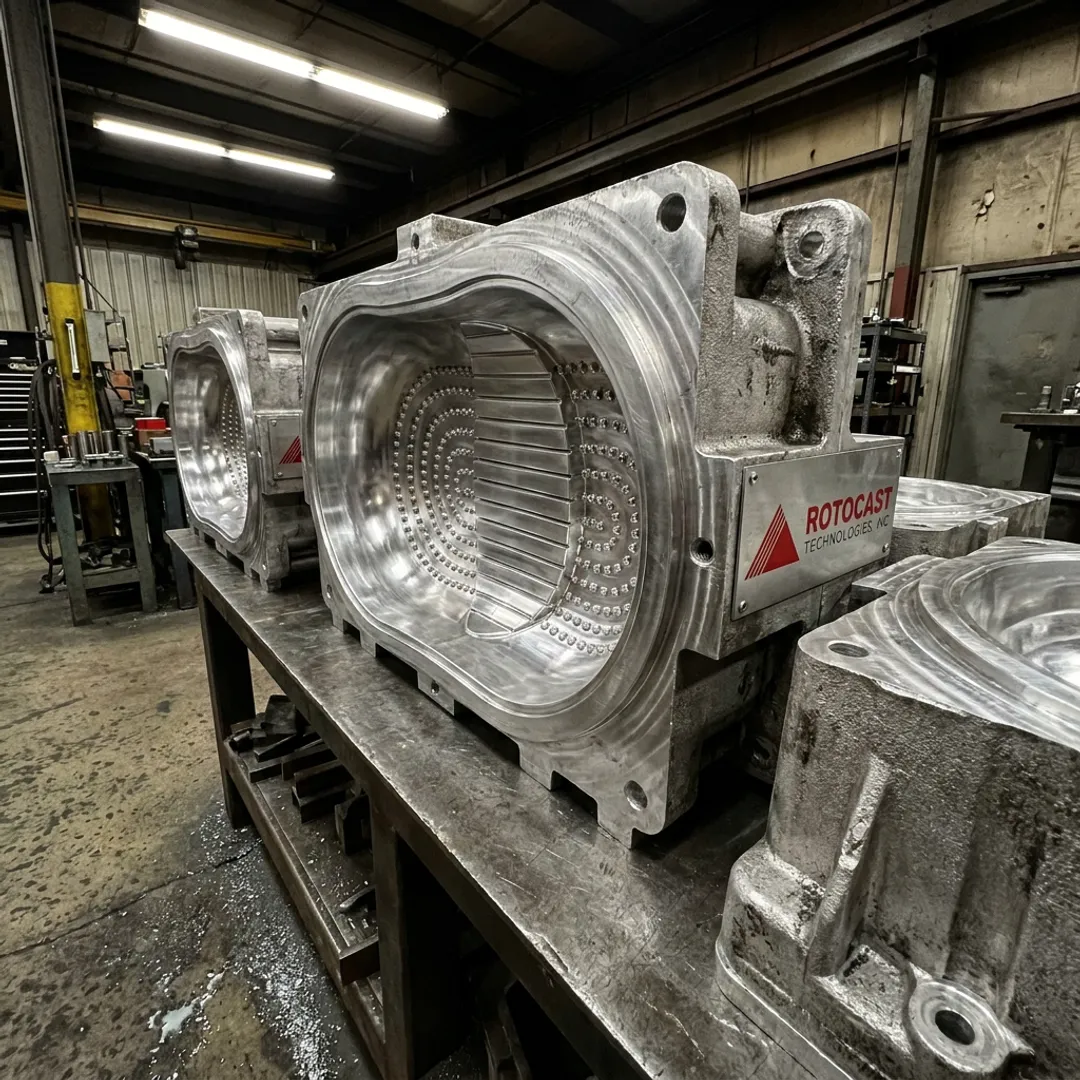

Aluminum cast tooling is often chosen for its balance of durability, thermal performance, and surface quality. Thin-walled aluminum castings can support efficient heat transfer and consistent molding behavior while remaining practical for production use. When produced with dense structure and high-quality interior surfaces, aluminum tooling can help manufacturers achieve better part finish and reliable long-term performance.

Yes, existing molds can often be repaired, rebuilt, or modified to restore performance or accommodate updated production needs. Common work includes correcting wear, replacing components, adjusting features, and improving fit or function. Repair and modification services can extend tool life, reduce replacement costs, and help manufacturers keep proven tooling in service longer.

Yes, design support can begin with customer drawings or electronic files before tooling production starts. Engineering review helps validate wall thickness, parting line layout, shutoff details, and other production-critical features. Addressing these factors early can reduce revisions later, improve manufacturability, and lead to a more efficient, longer-lived production tool.

Look for a tooling partner with proven experience, strong patternmaking capability, in-house production knowledge, and the ability to support finishing and repairs after delivery. It also helps to choose a company with a long operating history and a clear understanding of production demands. These factors usually translate into better communication, more durable tools, and fewer downstream issues.
